VE1306/02
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1955
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 211212
-
- Brand: Deutsche Philips-Ges.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: VE1306/02 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 310 x 220 x 175 mm / 12.2 x 8.7 x 6.9 inch
- Notes
- Philips Vollverstärker.

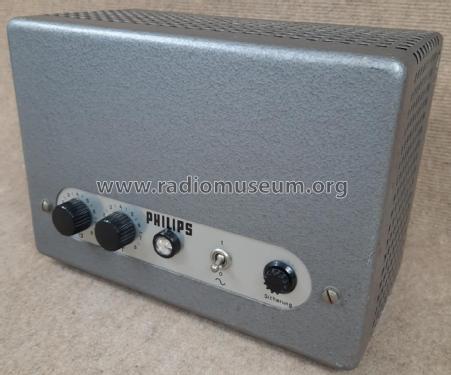

Frequenzbereich 15-15000 Hz; 1 Eingang, 2 Ausgänge (3V u. 100V). Abweichend vom Modell VE1306 hat der Verstärker VE1306/2 bei gleicher Röhren-Bestückung eine leicht geänderte Frontansicht.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Mentioned in
- -- Original-techn. papers. (Bedienungsanleitung, 26.7.1955)
- Author
- Model page created by Jürgen Küting. See "Data change" for further contributors.
