VE 1680

VE 1680; Philips - Österreich (ID = 493103) Speaker-P VE 1680; Philips - Österreich (ID = 493104) Speaker-P
Use red slider bar for more.

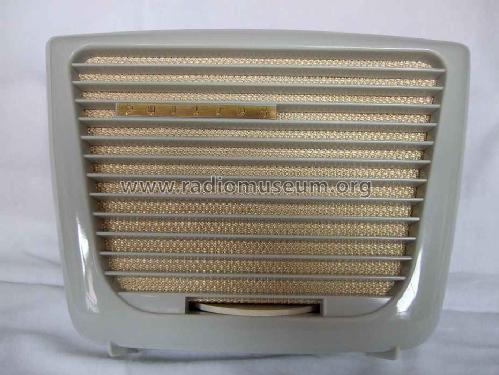

VE 1680; Philips - Österreich (ID = 493103) Speaker-P
Philips - Österreich: VE 1680 [Speaker-P] ID = 493103 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model VE 1680, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: VE 1680 - Philips - Österreich
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 250 x 170 x 60 mm / 9.8 x 6.7 x 2.4 inch
Notes Lautsprecher mit Lautstärkeregler, Trapezform 250/200 x 170 x 60 mm.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data - - Data from my own collection

Model page created by Jürgen Bühler. See "Data change" for further contributors.
