Video Cassette Recorder N1501 /00 /15 /19 /38 /43

Philips - Österreich

  • Year
  • 1975–1977
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 115573

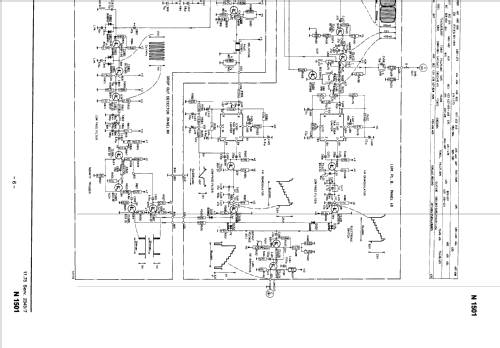

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Video-Taperecorder/-Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Video Cassette Recorder N1501 /00 /15 /19 /38 /43 - Philips - Österreich
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  •


    Video Signal System PAL: R/P
    Videostandard: VCR Standard
    Tuner equipped: Yes HF Output: Yes
    Timer: Yes Color: Yes
    Insert-Cut: No Controllable by Editing-System: No
    Timebas Corrector: No RGB Video In/Out: No
    Composite (FBAS) Video In/Out: Yes Component Video In/Out: No
    S-Video In/Out: No Signal to Noise Video: -
    Horizontal Resol. black/white: - Horizontal Resolution Color: -
    Dropout compensator: Yes Wow and Flutter lin. audiotrack: -
    No. of Audiochannels linear track: 1 No. of Audiochannels helical track:

    0

    Signal to Noise linear Audio track: - Signal to Noise helical Audio track: -
    Audio Out Asym Audio In Asym
    crosstalk lin. Audio track - crosstalk heli. Audio track -

    Audio Frequency Response :-
    Remote Control: No


    Fünf verschiedene Ausführungen:
    ../00 = Aufnahme und Wiedergabe nach der CCIR-PAL-Norm,
    ../15 = angepasst an die englische Fernsehnorm,
    ../19 = wie../00 aber mit dreipoliger Netzbuchse,
    ../38 = angepasst an die italienische Fernsehnorm,
    ../43 = angepasst an die südafrikanische Fernsehnorm.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
