Video Cassette Recorder VR2023/00

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1981

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 121977

• Picture
• Schematics

Previous Next

Previous Next

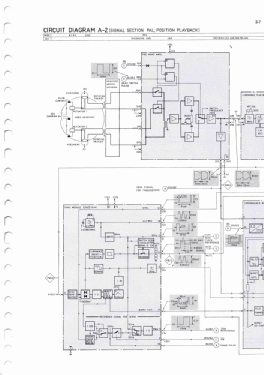

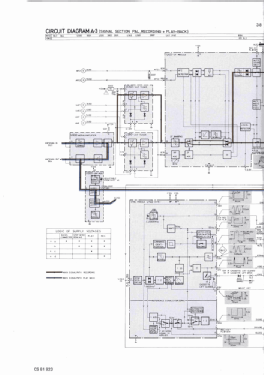

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Video Cassette Recorder VR2023/00 - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 152 x 365 mm / 21.3 x 6 x 14.4 inch

• Notes

• Video Signal System PAL: R/P Videostandard: Video 2000 Tuner equipped: Yes HF Output: Yes Timer: Yes Color: Yes Insert-Cut: No Controllable by Editing-System: No Output Level: 0.7V RGB Video In/Out: No Composite (FBAS) Video In/Out: Yes Component Video In/Out: No S-Video In/Out: No Signal to Noise Video: - Horizontal Resol. black/white: - Horizontal Resolution Color: - Dropout compensator: Yes Wow and Flutter lin. audiotrack: - No. of Audiochannels linear track: 1 No. of Audiochannels helical track: 0 Signal to Noise linear Audio track: - Signal to Noise helical Audio track: - Audio Out Asym Audio In Asym crosstalk lin. Audio track - crosstalk heli. Audio track - Audio Frequency Response: - Timebase Corrector: No Remote Control: IR

  Toplader, 6 pol. AV Buchse, Elektronischer VHF/UHF Tuner nach CCIR, diverse Norm und Ländervarianten bekannt.

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 1069 models, 1004 with images and 851 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips - Österreich
