• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1974

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 361408

• Number of Tubes
• 1

• Valves / Tubes
• A31-410W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Vulcano 12B310 /38W - Philips Italy; Milano MI

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 340 x 290 x 280 mm / 13.4 x 11.4 x 11 inch

• Notes

• Vedi anche Philips Philetta 12B310 /22

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

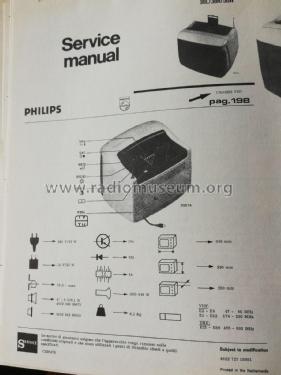

• Literature/Schematics (1)
• Schemario TV ediz. CELI volume XXIX pag. 217

• Author
• Model page created by Giuseppe Feniello. See "Data change" for further contributors.
