X19K140 /05 /08 Ch= K7

X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495744) Television X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495745) Television
X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495746) Television X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495747) Television
X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495748) Television X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495749) Television
X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495750) Television X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495751) Television
Use red slider bar for more.
X19K140 /05 /08 Ch= K7; Philips; Eindhoven (ID = 1495744) Television

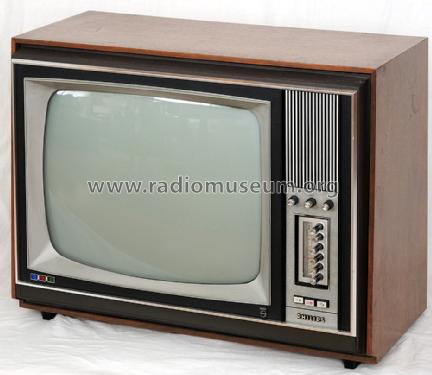

Philips; Eindhoven: X19K140 /05 /08 Ch= K7 [Television] ID = 1495744 933x809
Select picture or schematic to display from thumbnails on the right and click for download.
For model X19K140 /05 /08 Ch= K7, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1968 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: PCL86 PCF80 PL802 PCF802 PCF200 PCF200 PCF200 PL508 PL504 PL509 PY500 DY51 GY501 PD500 A49-11X or 19HVP22
Semiconductors (the count is only for transistors) 51: AF239 AF139 BF167 BF173 BF194 BF195 BC147 BC148 BC149 BC177 BC178 AC128 BA102 AA119 OA90 OA91 BYX10 BAX16 BY140 BA148 BY127
Main principle Superheterodyne (common); ZF/IF 38900/5500 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: X19K140 /05 /08 Ch= K7 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 640 x 500 x 480 mm / 25.2 x 19.7 x 18.9 inch
Notes

See also the German model Raffael Color D19K850
Only early models are equipped with valve DY51 in beam current limiter circuit.
Each semiconductor type listed once only.

Net weight (2.2 lb = 1 kg) 33 kg / 72 lb 11 oz (72.687 lb)
Source of data -- Original-techn. papers.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
