Cosmopolitan 8 RL300 (PP3/01)

Cosmopolitan 8 RL300 ; Philips Australia (ID = 763370) Radio Cosmopolitan 8 RL300 ; Philips Australia (ID = 646574) Radio

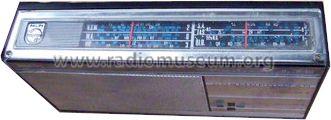

Cosmopolitan 8 RL300 ; Philips Australia (ID = 1234421) Radio
Use red slider bar for more.
Cosmopolitan 8 RL300 ; Philips Australia (ID = 763370) Radio
Philips Australia: Cosmopolitan 8 RL300 [Radio] ID = 763370 919x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cosmopolitan 8 RL300 (PP3/01), Philips Australia:
Philips Australia PP3

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF195 BF194 BF194 BF195 BC148 AC128 AC187 AC188 AA119 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Cosmopolitan 8 RL300 - Philips Australia
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.6875 x 4.1875 x 2 inch / 221 x 106 x 51 mm
Notes

The model is virtually identical to Cosmopolitan 8 PP3/01 from 1966. It was assigned a new model designation in 1970. The only major difference from the previous version is the silicon transistor types changed from a TO-18 to a X09 Lockfit package.

Chrome front grille, Australian scale, sold in cardboard box with brown leather carrying case and accessories. Converts to mains operation using Philips Power Pack.

Price in first year of sale 54.00 AUS $
Collectors' prices

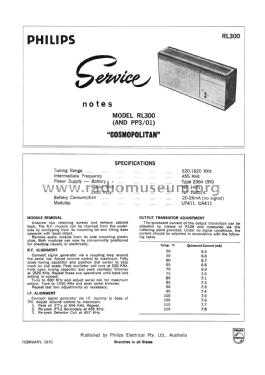

Literature/Schematics (1) - - Manufacturers Literature (Philips Service Notes, Feb 1970.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (Group G7, 1970, Page P1-15.)

Model page created by a member from A. See "Data change" for further contributors.
