Musicmaker MM1/01 (MMI/0I)

Musicmaker MM1/01 ; Philips Australia (ID = 2035999) Radio
Musicmaker MM1/01 ; Philips Australia (ID = 1659941) Radio Musicmaker MM1/01 ; Philips Australia (ID = 720237) Radio
Musicmaker MM1/01 ; Philips Australia (ID = 720238) Radio Musicmaker MM1/01 ; Philips Australia (ID = 1659935) Radio
Musicmaker MM1/01 ; Philips Australia (ID = 1659936) Radio Musicmaker MM1/01 ; Philips Australia (ID = 1659937) Radio
Musicmaker MM1/01 ; Philips Australia (ID = 1659938) Radio Musicmaker MM1/01 ; Philips Australia (ID = 1659939) Radio
Musicmaker MM1/01 ; Philips Australia (ID = 1659940) Radio Musicmaker MM1/01 ; Philips Australia (ID = 1659942) Radio
Use red slider bar for more.

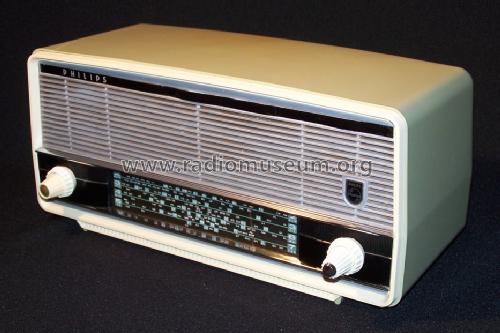

Musicmaker MM1/01 ; Philips Australia (ID = 1659941) Radio
Philips Australia: Musicmaker MM1/01 [Radio] ID = 1659941 933x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musicmaker MM1/01 (MMI/0I), Philips Australia

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AN7 6BH5 6BD7 6M5 6V4
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Musicmaker MM1/01 - Philips Australia
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 310 x 120 x 140 mm / 12.2 x 4.7 x 5.5 inch
Notes

Philips MM1/01;
Made for the Australian market.

The Musicmaker MM1/01 is an updated version of the earlier Musicmaker MM1. For service information refer to the MM1.

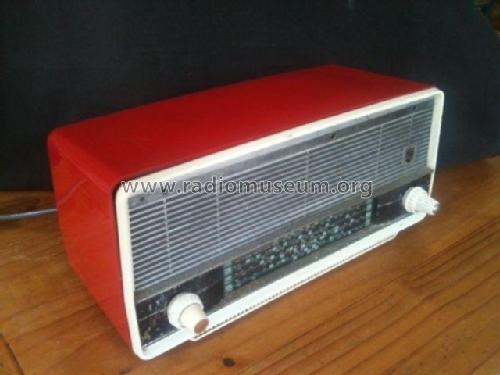

Colours available: Antique White, Ember Red & Glacier Green.

Price in first year of sale 29.00 AUS GNS

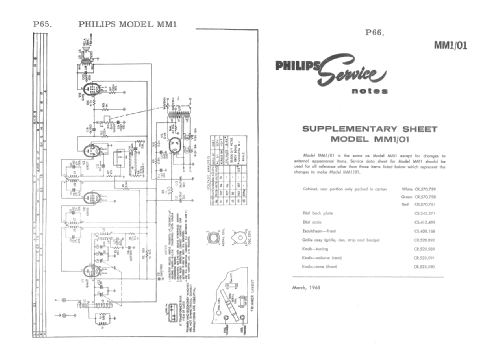

Literature/Schematics (1) -- Schematic (JR Publications Valve Radio Service Handbook Page P66)
Literature/Schematics (2) - - Manufacturers Literature (Philips service data sheets for model MM1/01)
