For model B2E48T /00G /00C /00W /00K, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona:

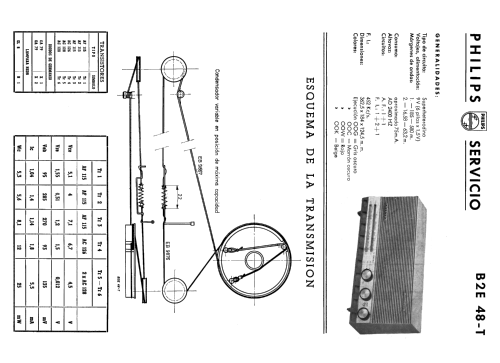

Foto del manual

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF115 AF115 AF115 AC126 AC128 AC128 OA79
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Batteries / addl. power jack / 6 x 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B2E48T /00G /00C /00W /00K - Philips Ibérica, COPRESA,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 362.5 x 184 x 124.5 mm / 14.3 x 7.2 x 4.9 inch
Notes

 Variantes representan el color de la caja siendo:
00G= Gris oscuro (dark grey)
00C= Marrón oscuro (dark brown)
00W= Rojo (red)
00K= Beige

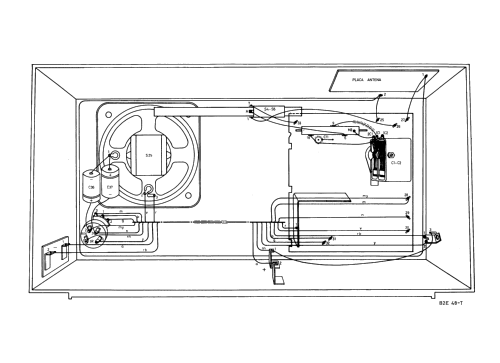

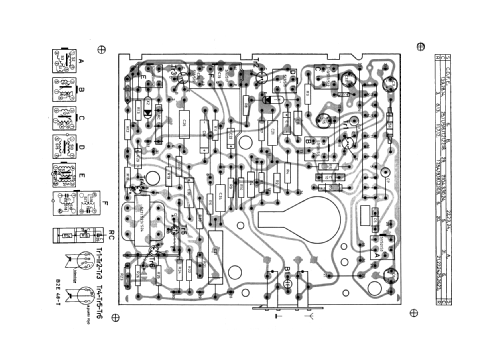

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
