Philetta 282-U
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1949 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: |
|---|
| Main principle | Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s) |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | AC/DC-set |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Philetta 282-U - Philips Ibérica, COPRESA, |

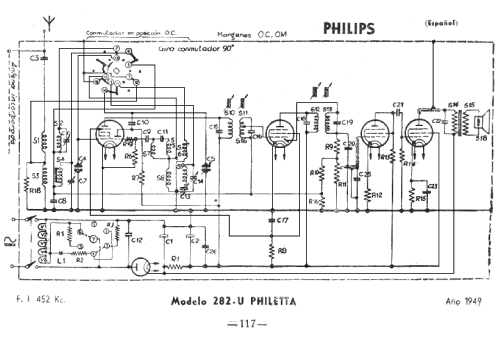

| Literature/Schematics (1) | -- Schematic |
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
