Leader Series 6 Speaker Box 70FB650 /00L

Leader Series 6 Speaker Box 70FB650 /00L; Philips Belgium (ID = 1981283) Speaker-P
Use red slider bar for more.
Leader Series 6 Speaker Box 70FB650 /00L; Philips Belgium (ID = 1981283) Speaker-P

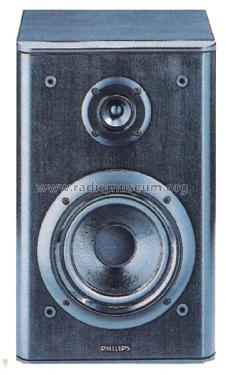

Philips Belgium: Leader Series 6 Speaker Box 70FB650 /00L [Speaker-P] ID = 1981283 724x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Leader Series 6 Speaker Box 70FB650 /00L, Philips Belgium (Belgien):
aus Herstellerprospekt: Philips Europa Magazin 93/94, Seite 201

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1993/1994 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details Hi-Fi equipment
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 50 W (80 W max.)
from Radiomuseum.org Model: Leader Series 6 Speaker Box 70FB650 /00L - Philips Belgium Belgien
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 260 x 415 x 200 mm / 10.2 x 16.3 x 7.9 inch
Notes

HiFi-Lautprecherbox, 2-Wege Bassreflex, Impedanz 6 Ohm, 18cm Tief/Mittelton, 1,8cm Kalotten Hochton-Lautsprecher mit Ferrofluid-Kühlung, PTC Überlastungsschutz, abnehmbare Frontbespannung, Holzgehäuse in Palisander-Dekor, dunkel.

Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 225.00 HFL
Mentioned in -- Original prospect or advert (Philips Europa Magazin 93/94, Seite 201)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Roland Müller. See "Data change" for further contributors.
