593

593; Philips Elec. Ind. (ID = 2310336) Radio 593; Philips Elec. Ind. (ID = 2310337) Radio
593; Philips Elec. Ind. (ID = 2310338) Radio
Use red slider bar for more.
593; Philips Elec. Ind. (ID = 2310336) Radio
Philips Elec. Ind.: 593 [Radio] ID = 2310336 1400x958
Select picture or schematic to display from thumbnails on the right and click for download.
For model 593, Philips Elec. Ind. of N.Z Ltd:

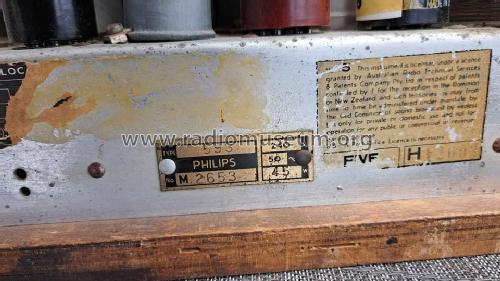

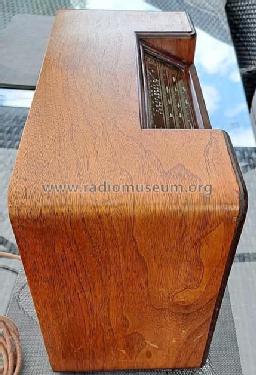

Philips model type 593. Photo taken with permission from owner.

Country:  New Zealand
Manufacturer / Brand:  Philips Elec. Ind. of N.Z Ltd
Year: 1945 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH35 EF39 EBC33 EL33 6X5GT
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 593 - Philips Elec. Ind. of N.Z Ltd
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Philips Elec. Ind. of N.Z Ltd
Here you find 25 models, 24 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
