• Year
  • 1965
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 348622

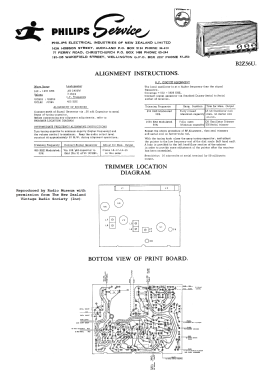

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: B2Z56U - Philips Electrical Industries
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 300 x 190 x 0 mm / 11.8 x 7.5 x 0 inch
  • Notes
  • Philips B2Z56U

    This is a series heater, transformerless, set which means the chassis has the possibility of being at mains voltage.

    MW: 512-1635 kHz.

    Speaker: AD 2400W, 3Ω.

    See also Philips B2Z55U and Fleetwood FL256U.
