CD Radio Cassette Recorder AZ2755

Philips Electrical Industries of New Zealand Ltd.; Wellington

Data
Forum
Pictures
Collections

  • Year
  • 2000 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 365811

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 568/10700 kHz
  • Wave bands

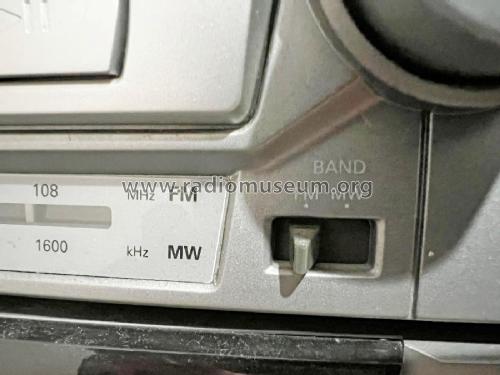

  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type)
  • Loudspeaker
  • 2 Loudspeakers / Ø 5 inch = 12.7 cm
  • Power out
  • 4 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CD Radio Cassette Recorder AZ2755 - Philips Electrical Industries
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 655 x 260 x 210 mm / 25.8 x 10.2 x 8.3 inch
  • Notes

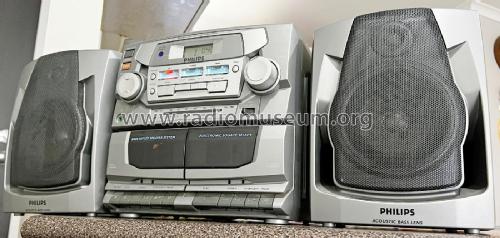

  • Philips AZ2755 CD Radio Cassette Recorder

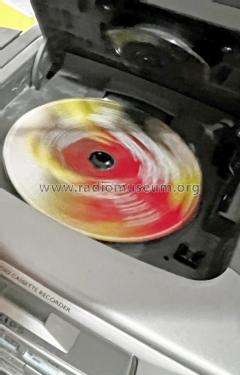

    CD player, AM/FM radio, and twin cassette recorder/player.  2 watts per channel output into 5-inch, 4Ω speakers.

  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
