• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 368824

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UCH81 UBF80 UCL82 UCL82 UL84 UL84 UY89 UY89

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 6 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Power out
• 6 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Concorde F4Z37A - Philips Electrical Industries

• Shape

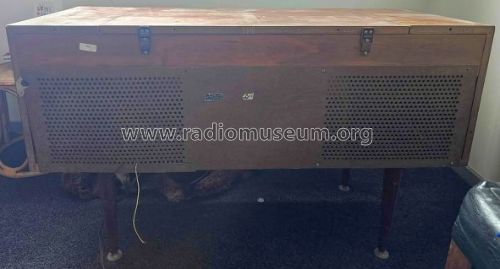

• Console, Lowboy (legs < 50 %).

• Notes

• Philips F4Z37A Concorde

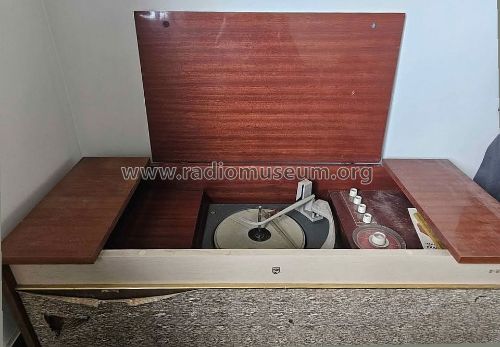

  • 8-valve (including 2 rectifiers) broadcast (MW) lowboy stereogram.

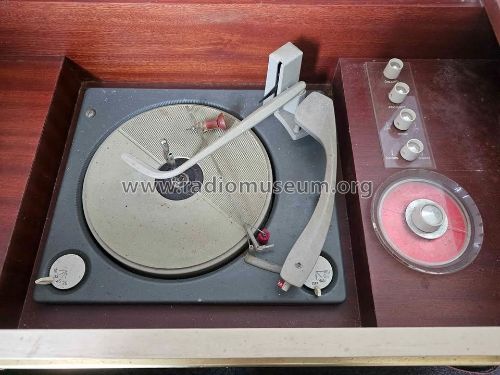

  • Record changer: BSR UA15 4-speed
  • Frequency range: 512-1630 kHz
  • Speakers: 2 x 8" AD2800AD 800Ω Hi-Z transformerless
  • Cabinet: High gloss walnut and mahogany console lowboy
  • Price: £69/10/-

  Re-released as the F4Z67A in 1966 with a new valve lineup.

• Price in first year of sale
• 69.50 NZ £

• Mentioned in
• -- Original prospect or advert (Press 5 March 1965 Page 3)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
