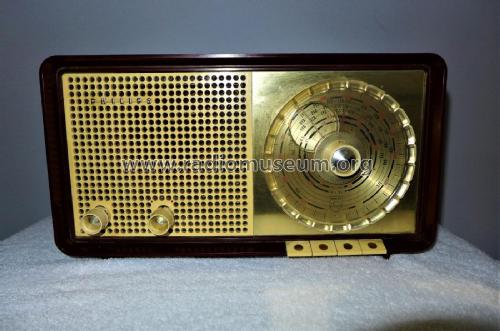

International Micromatic B3Z95U
Philips Electrical Industries of New Zealand Ltd.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340231

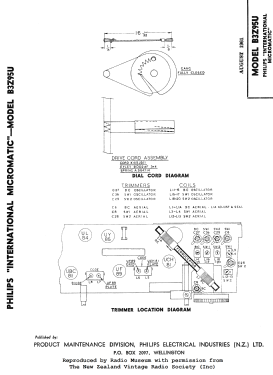

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.

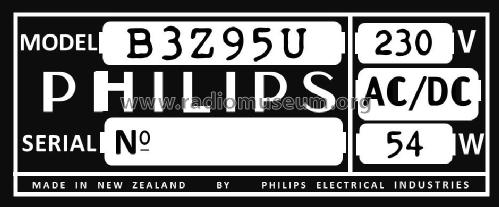

- Power type and voltage
- AC/DC-set / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: International Micromatic B3Z95U - Philips Electrical Industries
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13 x 7.25 x 6 inch / 330 x 184 x 152 mm
- Notes
-

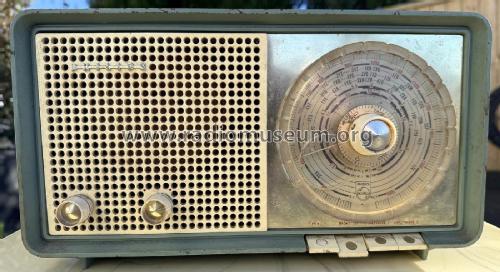

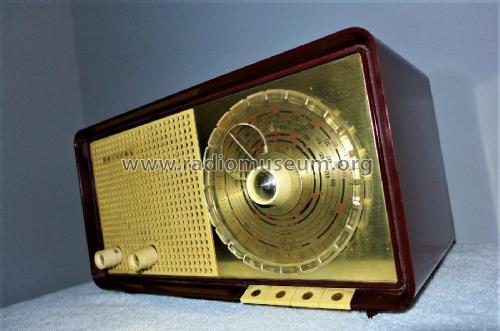

5-Valve superhet all-wave mantel model receiver.

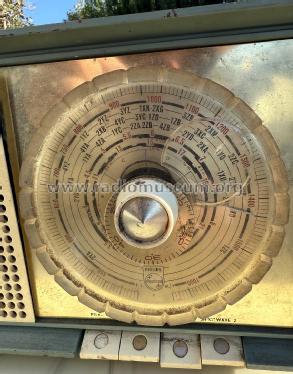

Philips B3Z95U INTERNATIONAL MICROMATIC. Extended Range All-Wave Mantel Radio with precision tuning. 4 push buttons for gram, pick-up, broadcast, and 2 short-wave ranges. Easy-to-read illuminated dial, 2 self-contained aerial systems, Cabinet in Surf Green or Desert Sand. 25 gns.
See also Fleetwood Model FL395U.
- Price in first year of sale
- 25.00 NZ Guineas
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
