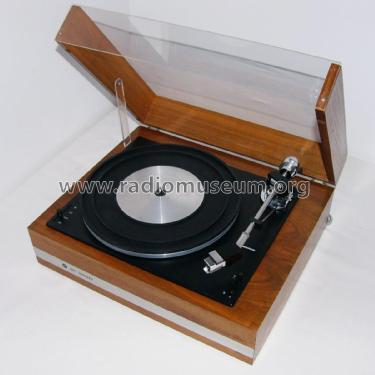

Hifi Sonate ; Phonotechnik Pirna/ (ID = 2238347) R-Player
Phonotechnik Pirna/: Hifi Sonate [R-Player] ID = 2238347 1200x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hifi Sonate, Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona:
Mit reparierter Haube ohne Bräunung

Country:  Germany
Manufacturer / Brand:  Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona
Year: 1979 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Hifi Sonate - Phonotechnik Pirna/Zittau; VEB
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 350 x 170 mm / 16.9 x 13.8 x 6.7 inch
Notes

Weiterbau des EAG Sonate in geändertem, schmaleren Gehäuse. Das Gehäuse ist weitgehend identisch zum Schwestermodell Hifi Stereo Sinfonie, mit dem gleichen Plattenspielerchassis, das aber mit Kristallsystem ausgestattet ist. Das Modell Sonate hat dagegen einen eingebauten Entzerrer-Vorverstärker für das darin verbaute Magnetsystem MS16SD.

Model page created by Gerhard Wickern. See "Data change" for further contributors.
