• Year
  • 1980 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 114816

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Various materials
  • from Radiomuseum.org

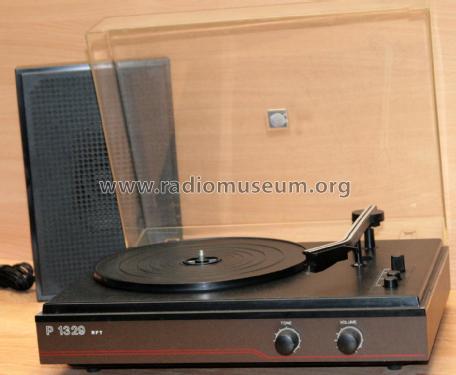

  • Model: P1329 - Phonotechnik Pirna/Zittau; VEB
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 357 x 120 x 267 mm / 14.1 x 4.7 x 10.5 inch
  • Notes
  • einfacher Mono-Plattenspieler.
  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Price in first year of sale
  • 365.00 Mark
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • Sortimentskatalog Elektroakustik (DDR, 1987)
  • Author
  • Model page created by Jörg Kulbe. See "Data change" for further contributors.
