SP 3001

SP 3001; Phonotechnik Pirna/ (ID = 340005) R-Player

SP 3001; Phonotechnik Pirna/ (ID = 1090498) R-Player

SP 3001; Phonotechnik Pirna/ (ID = 1090501) R-Player

SP 3001; Phonotechnik Pirna/ (ID = 1090517) R-Player

SP 3001; Phonotechnik Pirna/ (ID = 1090522) R-Player

SP 3001; Phonotechnik Pirna/ (ID = 1090528) R-Player

SP 3001; Phonotechnik Pirna/ (ID = 1090529) R-Player
SP 3001; Phonotechnik Pirna/ (ID = 443862) R-Player SP 3001; Phonotechnik Pirna/ (ID = 104221) R-Player
SP 3001; Phonotechnik Pirna/ (ID = 129206) R-Player SP 3001; Phonotechnik Pirna/ (ID = 193343) R-Player
SP 3001; Phonotechnik Pirna/ (ID = 193346) R-Player SP 3001; Phonotechnik Pirna/ (ID = 193349) R-Player
SP 3001; Phonotechnik Pirna/ (ID = 193352) R-Player SP 3001; Phonotechnik Pirna/ (ID = 1450337) R-Player
SP 3001; Phonotechnik Pirna/ (ID = 1450340) R-Player SP 3001; Phonotechnik Pirna/ (ID = 1450342) R-Player
Use red slider bar for more.

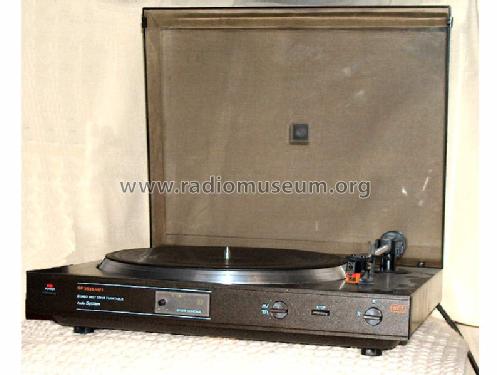

SP 3001; Phonotechnik Pirna/ (ID = 443862) R-Player
Phonotechnik Pirna/: SP 3001 [R-Player] ID = 443862 795x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model SP 3001, Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona

Country:  Germany
Manufacturer / Brand:  Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona
Year: 1983 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14: BC313 BC313 SC236 SC236 SC236 SC236 SC236 SC236 SF126 SF126 SC239 SC239 SC239 SC239
Wave bands - without
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: SP 3001 - Phonotechnik Pirna/Zittau; VEB
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 126 x 320 mm / 15.4 x 5 x 12.6 inch
Notes

Plattenabspielgerät mit 33 und 45U/min, mit Entzerrervorverstärker für Abtastsystem MS 27 SD. Elektronisch geregelter Motor. Vorstellung auf der Leipziger Frühjahrsmesse 1983. Anzahl der Transistoren im Komplettgerät.

Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
Price in first year of sale 650.00 DM
Collectors' prices
Source of data - - Manufacturers Literature / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein

Model page created by Bernd Pötzsch. See "Data change" for further contributors.



All listed radios etc. from Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona
Here you find 49 models, 42 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
