405

405; Phonola SA, FIMI; (ID = 617954) Radio

405; Phonola SA, FIMI; (ID = 617955) Radio

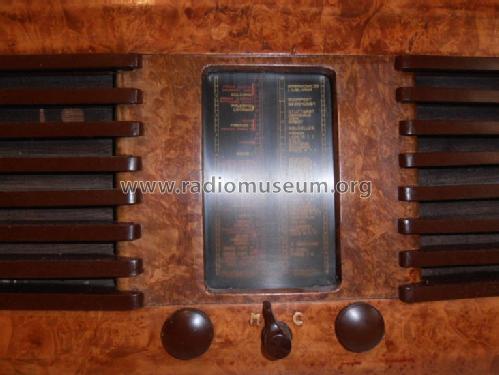

405; Phonola SA, FIMI; (ID = 1182264) Radio 405; Phonola SA, FIMI; (ID = 1182265) Radio
405; Phonola SA, FIMI; (ID = 1182266) Radio
Use red slider bar for more.
405; Phonola SA, FIMI; (ID = 1182264) Radio
Phonola SA, FIMI;: 405 [Radio] ID = 1182264 733x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model 405, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECH4 EBL1 WE54
Conflicting model year with tubedata.
The model date contradicts tube dates. [ ECH4 (1940)]
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 405 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 250 x 190 mm / 19.7 x 9.8 x 7.5 inch
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) D.E. Ravalico, Il Radiolibro, VII Edizione Rifatta, Editore Ulrico Hoepli, Milano, 1943

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
