• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206555

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF9 75 6F6G WE54

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 100; 140; 200; 240 (+10; +20; +30) Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

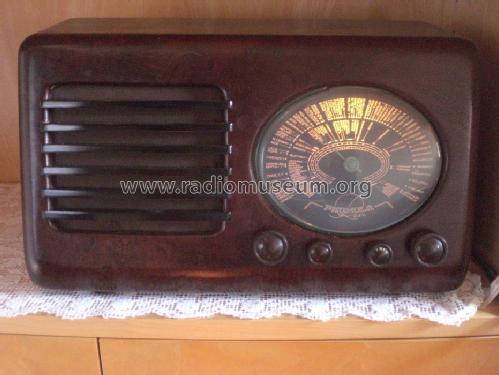

• Model: 529 [early] - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 280 x 230 mm / 18.9 x 11 x 9.1 inch

• Notes

• Early version of Phonola 529 equipped with equivalent tubes (75 in place of EBC3, E443H in place of EL3).

  ---

  Nella prima serie gli apparecchi sono equipaggiati con valvole equivalenti.
  Controllo di tono. Ingresso per giradischi.

• Mentioned in
• Guida Pratica Antique Radio II (2000)
