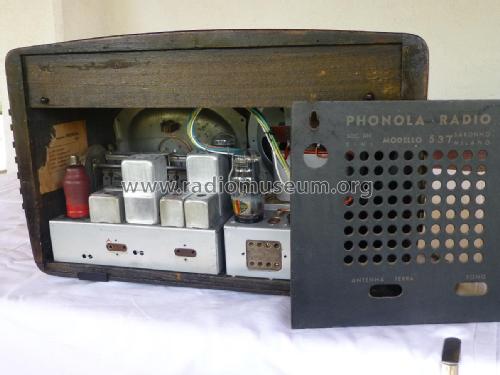

For model 537, Phonola SA, FIMI; Saronno (VA):
Phonola 537.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBC3 EL3 WE54
Main principle Super-Heterodyne (Super in general)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 100 - 270 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
Power out 3 W (undistorted)
from Radiomuseum.org Model: 537 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 240 x 290 mm / 19.7 x 9.4 x 11.4 inch
Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
