5593B

5593B; Phonola SA, FIMI; (ID = 416882) Radio

5593B; Phonola SA, FIMI; (ID = 416883) Radio
5593B; Phonola SA, FIMI; (ID = 2268832) Radio 5593B; Phonola SA, FIMI; (ID = 760464) Radio
5593B; Phonola SA, FIMI; (ID = 760467) Radio 5593B; Phonola SA, FIMI; (ID = 760465) Radio
5593B; Phonola SA, FIMI; (ID = 760463) Radio 5593B; Phonola SA, FIMI; (ID = 760468) Radio
Use red slider bar for more.
5593B; Phonola SA, FIMI; (ID = 2268832) Radio
Phonola SA, FIMI;: 5593B [Radio] ID = 2268832 1400x1009
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5593B, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: 5593B - Phonola SA, FIMI; Saronno VA
Material Moulded (Bakelite or Plastics)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 230 x 140 x 95 mm / 9.1 x 5.5 x 3.7 inch
Notes Serie ANIE MA. Altoparlante magnetodinamico ellittico di dimensioni 75 x 120 mm.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Price in first year of sale 19'000.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert

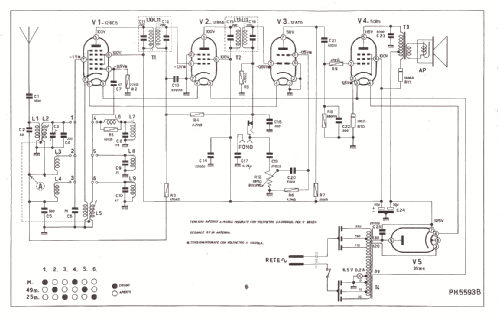

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
