- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1956–1958
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 139058
Autoradio Phonola 5595

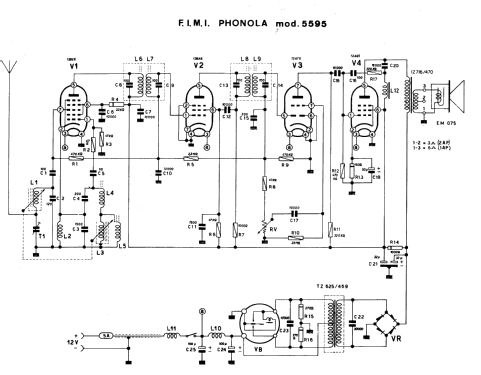

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Selenium-Rectifier Zerhacker
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: 5595 - Phonola SA, FIMI; Saronno VA
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 185 x 100 x 185 mm / 7.3 x 3.9 x 7.3 inch
- Notes
-
Autoradio a valvole con alimentazione a 12 Volt. La tensione anodica è ottenuta da un vibratore elettromeccanico e rettificata da un raddrizzatore al selenio. Installabile, per es., su Fiat 1100/58.
- Net weight (2.2 lb = 1 kg)
- 2.850 kg / 6 lb 4.4 oz (6.278 lb)
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)
- Schemario Scuola Radio Elettra
- Author
- Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
