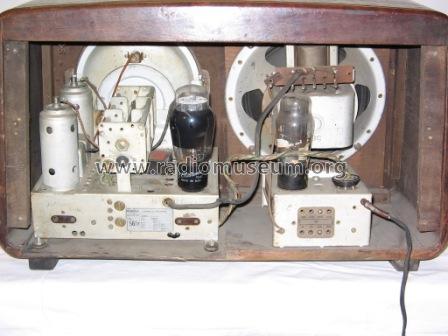

561; Phonola SA, FIMI; (ID = 173788) Radio 561; Phonola SA, FIMI; (ID = 173789) Radio
561; Phonola SA, FIMI; (ID = 173790) Radio 561; Phonola SA, FIMI; (ID = 212218) Radio
561; Phonola SA, FIMI; (ID = 212220) Radio 561; Phonola SA, FIMI; (ID = 212221) Radio
561; Phonola SA, FIMI; (ID = 212222) Radio 561; Phonola SA, FIMI; (ID = 212223) Radio
561; Phonola SA, FIMI; (ID = 212226) Radio 561; Phonola SA, FIMI; (ID = 212227) Radio
Use red slider bar for more.
561; Phonola SA, FIMI; (ID = 173788) Radio
Phonola SA, FIMI;: 561 [Radio] ID = 173788 448x336
Select picture or schematic to display from thumbnails on the right and click for download.
For model 561, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6P7G 6BN8G 6L6G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 109-270 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 561 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 510 x 315 x 235 mm / 20.1 x 12.4 x 9.3 inch
Notes Gehäuse mit abgerundeten Ecken.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Collectors' prices
Source of data Guida Pratica Antique Radio IV (2001)

Model page created by Donat Frey. See "Data change" for further contributors.
