• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100280

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBC3 EL3 WE54

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

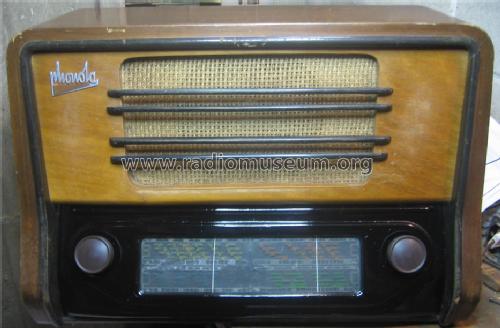

• Model: 585 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 380 x 250 mm / 22.8 x 15 x 9.8 inch

• Notes
• Gamme d'onda: 2x OM, 2x OC.
  Wave bands: 2× BC, 2× SW.

• Literature/Schematics (1)

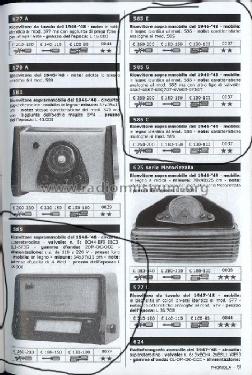

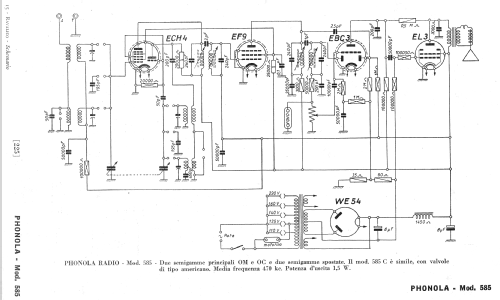

• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 225)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
