591 (Ch= 590)

591 ; Phonola SA, FIMI; (ID = 382925) Radio

591 ; Phonola SA, FIMI; (ID = 382926) Radio
591 ; Phonola SA, FIMI; (ID = 327974) Radio 591 ; Phonola SA, FIMI; (ID = 327977) Radio

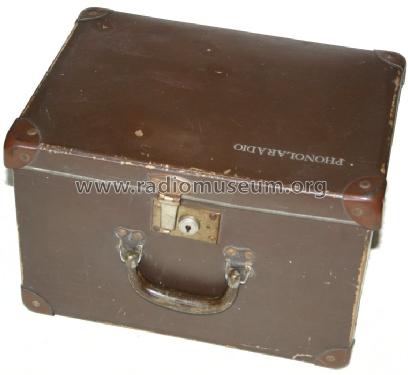

591 ; Phonola SA, FIMI; (ID = 327980) Radio 591 ; Phonola SA, FIMI; (ID = 327981) Radio

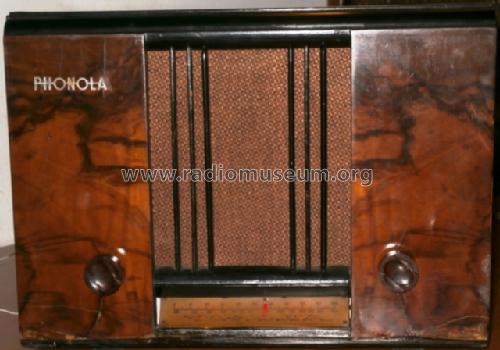

591 ; Phonola SA, FIMI; (ID = 327982) Radio 591 ; Phonola SA, FIMI; (ID = 1459433) Radio
591 ; Phonola SA, FIMI; (ID = 1459434) Radio 591 ; Phonola SA, FIMI; (ID = 1482622) Radio
591 ; Phonola SA, FIMI; (ID = 1482623) Radio 591 ; Phonola SA, FIMI; (ID = 1482624) Radio
Use red slider bar for more.
591 ; Phonola SA, FIMI; (ID = 327974) Radio
Phonola SA, FIMI;: 591 [Radio] ID = 327974 837x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 591 (Ch= 590), Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 2A5 80
Main principle Super-Heterodyne (Super in general); ZF/IF 175 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 591 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 320 x 220 x 200 mm / 12.6 x 8.7 x 7.9 inch
Notes Serie Alcis.
Collectors' prices
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in A. Battocchio, La bella radio, Mosè Edizioni (pag. 47)
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
