620

620; Phonola SA, FIMI; (ID = 160627) Radio
620; Phonola SA, FIMI; (ID = 1293250) Radio 620; Phonola SA, FIMI; (ID = 1293251) Radio
620; Phonola SA, FIMI; (ID = 1293252) Radio 620; Phonola SA, FIMI; (ID = 1293253) Radio
620; Phonola SA, FIMI; (ID = 1293254) Radio 620; Phonola SA, FIMI; (ID = 1293255) Radio
620; Phonola SA, FIMI; (ID = 1293256) Radio
Use red slider bar for more.

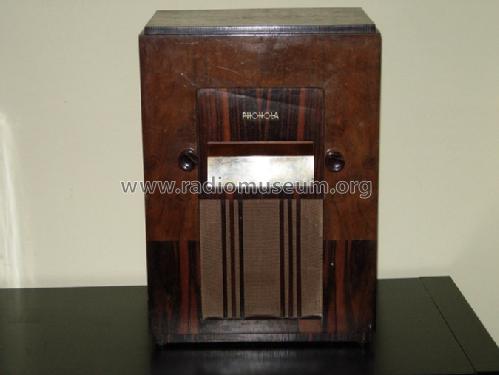

620; Phonola SA, FIMI; (ID = 1293250) Radio
Phonola SA, FIMI;: 620 [Radio] ID = 1293250 675x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model 620, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 47 80
Main principle Superheterodyne (common); ZF/IF 370 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 620 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Controllo di tono on/off. Ingresso Pick-Up.

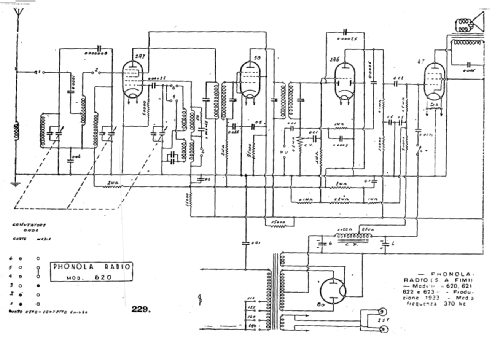

Literature/Schematics (1) -- Schematic
Literature/Schematics (2) Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
