• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119013

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-270 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 715 - Phonola SA, FIMI; Saronno VA
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Serie Neosinto. Pulsantiera per la selezione di 8 stazioni. Indicatore di sintonia al neon.

    Controllo di tono.
    Antenna fittizia realizzata con il collegamento della rete elettrica di alimentazione alla presa di antenna dell'apparecchio tramite un condensatore di isolamento. Inserendo l’antenna esterna il collegamento viene disattivato.

  • Price in first year of sale
  • 3,000.00 ITL
  • Mentioned in

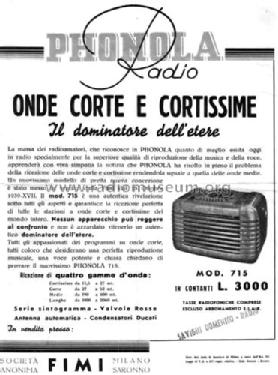

  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Schematic
  • Literature/Schematics (2)
  • Il Radio Libro, (Ravalico) 6a edizione 1942
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
