771 (Ch= 770)

771 ; Phonola SA, FIMI; (ID = 627118) Radio
771 ; Phonola SA, FIMI; (ID = 2436781) Radio 771 ; Phonola SA, FIMI; (ID = 2438434) Radio
Use red slider bar for more.
771 ; Phonola SA, FIMI; (ID = 2436781) Radio
Phonola SA, FIMI;: 771 [Radio] ID = 2436781 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 771 (Ch= 770), Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ACH1 AF2 75 56 45 45 80
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 771 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Serie Ferrosite. Scala luminosa in cristallo.

Price in first year of sale 1'750.00 ITL

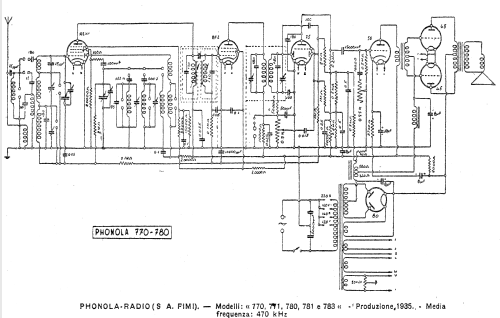

Literature/Schematics (1) -- Schematic (Schemario degli Apparecchi Radio IV Edizione D.E. Ravalico Editore Ulrico Hoepli Milano 1950)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
