791

791; Phonola SA, FIMI; (ID = 1577522) Radio
791; Phonola SA, FIMI; (ID = 1577060) Radio 791; Phonola SA, FIMI; (ID = 1577061) Radio
791; Phonola SA, FIMI; (ID = 1577062) Radio 791; Phonola SA, FIMI; (ID = 1577063) Radio

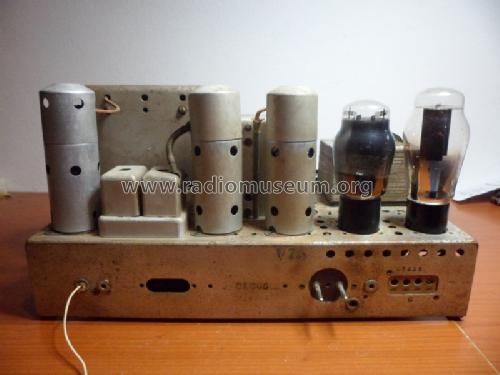

791; Phonola SA, FIMI; (ID = 1577064) Radio 791; Phonola SA, FIMI; (ID = 1577065) Radio
Use red slider bar for more.
791; Phonola SA, FIMI; (ID = 1577060) Radio
Phonola SA, FIMI;: 791 [Radio] ID = 1577060 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model 791, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 57 56 75 47 1561
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 791 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 390 x 250 mm / 18.9 x 15.4 x 9.8 inch
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
