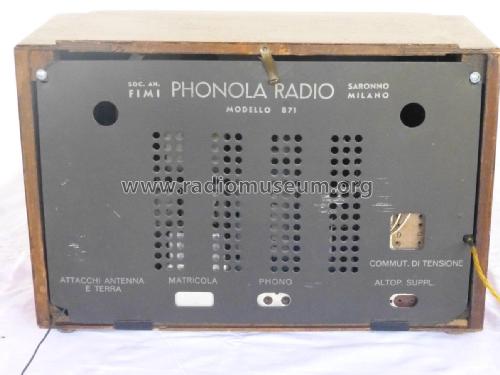

871; Phonola SA, FIMI; (ID = 2243043) Radio 871; Phonola SA, FIMI; (ID = 2243048) Radio
871; Phonola SA, FIMI; (ID = 2243047) Radio 871; Phonola SA, FIMI; (ID = 278256) Radio
871; Phonola SA, FIMI; (ID = 278257) Radio 871; Phonola SA, FIMI; (ID = 386563) Radio
871; Phonola SA, FIMI; (ID = 386564) Radio 871; Phonola SA, FIMI; (ID = 386565) Radio
Use red slider bar for more.
871; Phonola SA, FIMI; (ID = 2243044) Radio
Phonola SA, FIMI;: 871 [Radio] ID = 2243044 1296x972
Select picture or schematic to display from thumbnails on the right and click for download.
For model 871, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AK2 6B7 AL4 or WE38 WE53 or AZ2
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 100-240 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 871 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 320 x 220 mm / 18.9 x 12.6 x 8.7 inch
Notes Serie Ferrosite. La radio è stata prodotta anche con la rettificatrice 80.
Earlier model were using 80 instead of AZ2.
Collectors' prices
Mentioned in A. Battocchio, La bella radio, Mosè Edizioni
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
