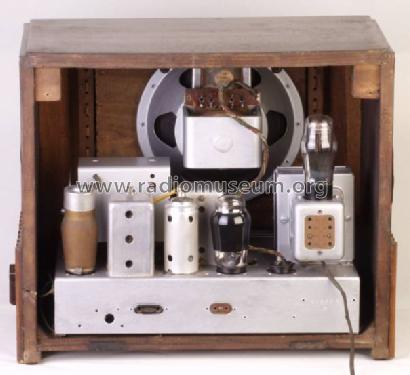

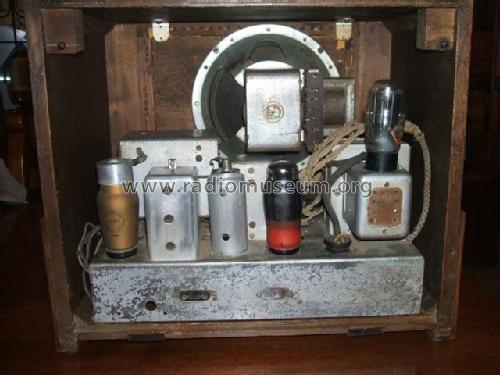

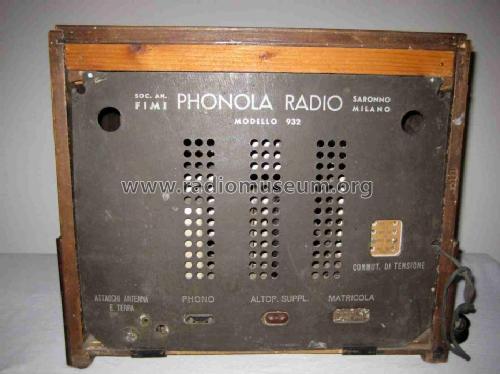

932; Phonola SA, FIMI; (ID = 134775) Radio
Phonola SA, FIMI;: 932 [Radio] ID = 134775 604x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model 932, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: WE32 78 WE37 AL4 80
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)

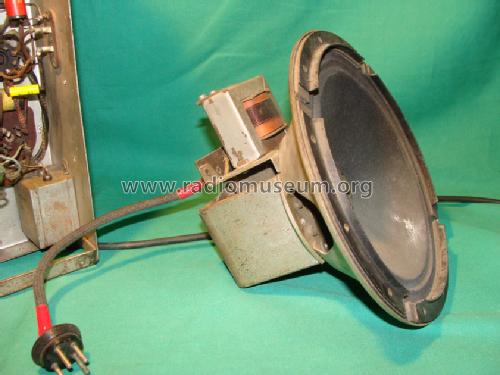

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 932 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 380 x 260 mm / 17.7 x 15 x 10.2 inch
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Bernhard Beier. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 669 models, 388 with images and 485 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
