All Transistor OM Radio Clock

All Transistor OM Radio Clock ; Phonola SA, FIMI; (ID = 2324626) Radio All Transistor OM Radio Clock ; Phonola SA, FIMI; (ID = 2324624) Radio
All Transistor OM Radio Clock ; Phonola SA, FIMI; (ID = 2324625) Radio All Transistor OM Radio Clock ; Phonola SA, FIMI; (ID = 2324627) Radio
All Transistor OM Radio Clock ; Phonola SA, FIMI; (ID = 2324628) Radio
Use red slider bar for more.

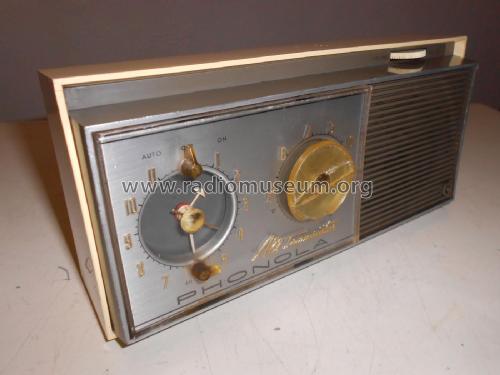

All Transistor OM Radio Clock ; Phonola SA, FIMI; (ID = 2324626) Radio
Phonola SA, FIMI;: All Transistor OM Radio Clock [Radio] ID = 2324626 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor OM Radio Clock, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: All Transistor OM Radio Clock - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 242 x 120 x 68 mm / 9.5 x 4.7 x 2.7 inch
Notes

controllo volume/alarm - presa per cuffia - antenna interna in ferrite - selettore auto/off/on - selettore 60/30/0.

Made in Italy.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 664 models, 380 with images and 483 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
