FD3-B

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner

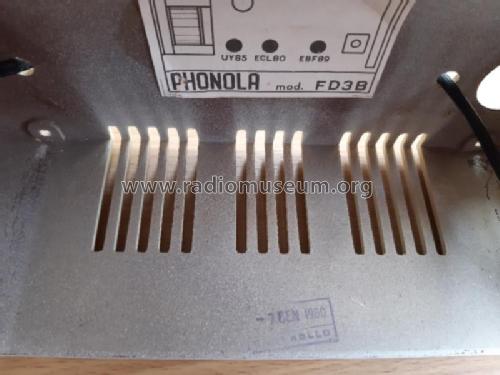

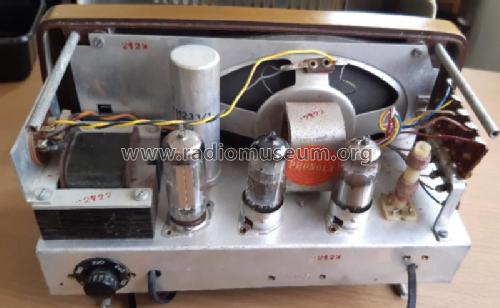

Valves / Tubes 3: EBF89 ECL80 UY85
Main principle TRF with diode detector; 2 AF stage(s)
Wave bands Long Wave and/or Very Low Frequency (VLF).
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FD3-B - Phonola SA, FIMI; Saronno VA
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 260 x 160 x 120 mm / 10.2 x 6.3 x 4.7 inch
Notes Ricevitore filodiffusione canali da 1 a 6.
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
