Ferrosite 680

Ferrosite 680; Phonola SA, FIMI; (ID = 2605658) Radio
Ferrosite 680; Phonola SA, FIMI; (ID = 2027735) Radio Ferrosite 680; Phonola SA, FIMI; (ID = 2027733) Radio

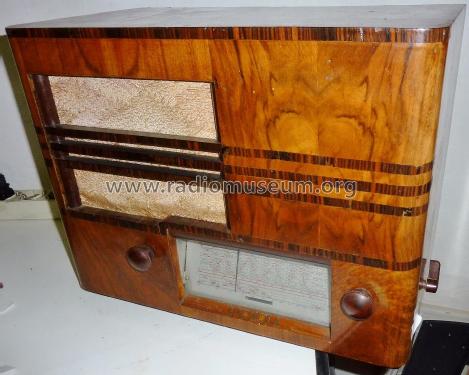

Ferrosite 680; Phonola SA, FIMI; (ID = 2027734) Radio Ferrosite 680; Phonola SA, FIMI; (ID = 2027736) Radio
Ferrosite 680; Phonola SA, FIMI; (ID = 2027737) Radio Ferrosite 680; Phonola SA, FIMI; (ID = 2027738) Radio
Use red slider bar for more.
Ferrosite 680; Phonola SA, FIMI; (ID = 2027735) Radio
Phonola SA, FIMI;: Ferrosite 680 [Radio] ID = 2027735 933x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ferrosite 680, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK1 AF2 75 E443H 1561
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Ferrosite 680 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Controllo di tono. Ingresso Fono.

Mentioned in Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

Model page created by Ciro Guidi. See "Data change" for further contributors.
