Ferrosite 685

Ferrosite 685; Phonola SA, FIMI; (ID = 352060) Radio Ferrosite 685; Phonola SA, FIMI; (ID = 348940) Radio
Ferrosite 685; Phonola SA, FIMI; (ID = 348941) Radio Ferrosite 685; Phonola SA, FIMI; (ID = 348942) Radio
Use red slider bar for more.

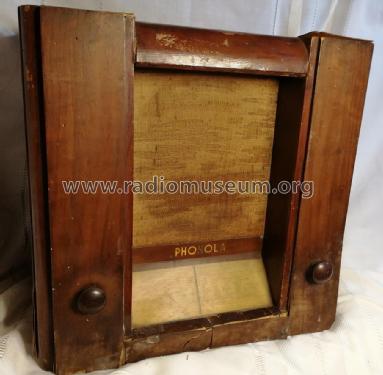

Ferrosite 685; Phonola SA, FIMI; (ID = 352060) Radio
Phonola SA, FIMI;: Ferrosite 685 [Radio] ID = 352060 498x537
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ferrosite 685, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Ferrosite 685 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes
Source of data Guida Pratica Antique Radio V (2003)

Model page created by Harald Schlosser. See "Data change" for further contributors.



All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Here you find 664 models, 380 with images and 483 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
