FM/MW Radio Receiver NT2200/08

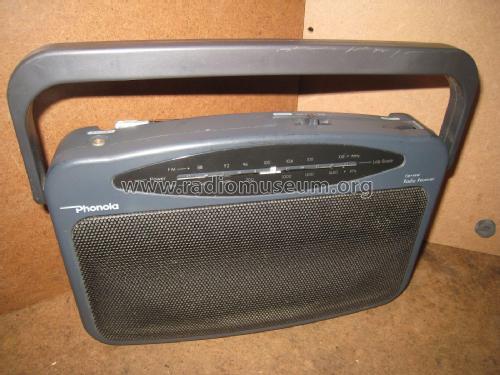

FM/MW Radio Receiver NT2200/08; Phonola SA, FIMI; (ID = 2122967) Radio FM/MW Radio Receiver NT2200/08; Phonola SA, FIMI; (ID = 2122968) Radio
FM/MW Radio Receiver NT2200/08; Phonola SA, FIMI; (ID = 2122969) Radio FM/MW Radio Receiver NT2200/08; Phonola SA, FIMI; (ID = 2122970) Radio
FM/MW Radio Receiver NT2200/08; Phonola SA, FIMI; (ID = 2122971) Radio
Use red slider bar for more.
FM/MW Radio Receiver NT2200/08; Phonola SA, FIMI; (ID = 2122967) Radio
Phonola SA, FIMI;: FM/MW Radio Receiver NT2200/08 [Radio] ID = 2122967 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/MW Radio Receiver NT2200/08, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 2000 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: FM/MW Radio Receiver NT2200/08 - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 145 x 43 mm / 9.3 x 5.7 x 1.7 inch
Notes

PHONOLA FM/MW Radio Receiver mod. NT2200/08: transport handle, FM telescopic external antenna, AM ferrite internal antenna, volume control, FM/MW switch, headphone output,  frequency range: MW 540/1605 kHz - FM 88/108 MHz.

Made in China.

Net weight (2.2 lb = 1 kg) 0.450 kg / 0 lb 15.9 oz (0.991 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
