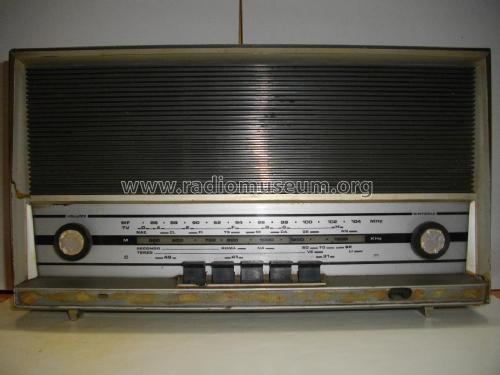

Grazia RV6353

Grazia RV6353; Phonola SA, FIMI; (ID = 1187336) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1187337) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745642) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745643) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745644) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745645) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745646) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745647) Radio

Grazia RV6353; Phonola SA, FIMI; (ID = 1745648) Radio
Grazia RV6353; Phonola SA, FIMI; (ID = 314184) Radio Grazia RV6353; Phonola SA, FIMI; (ID = 314496) Radio
Grazia RV6353; Phonola SA, FIMI; (ID = 314497) Radio Grazia RV6353; Phonola SA, FIMI; (ID = 1738964) Radio
Grazia RV6353; Phonola SA, FIMI; (ID = 1745641) Radio Grazia RV6353; Phonola SA, FIMI; (ID = 2076963) Radio
Grazia RV6353; Phonola SA, FIMI; (ID = 2076965) Radio Grazia RV6353; Phonola SA, FIMI; (ID = 2076966) Radio
Grazia RV6353; Phonola SA, FIMI; (ID = 2076967) Radio Grazia RV6353; Phonola SA, FIMI; (ID = 2076968) Radio
Use red slider bar for more.
Grazia RV6353; Phonola SA, FIMI; (ID = 314184) Radio
Phonola SA, FIMI;: Grazia RV6353 [Radio] ID = 314184 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grazia RV6353, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECC85 ECH81 EF89 UCL82
Semiconductors (the count is only for transistors) AA119 AA119 AA119 BY114
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Grazia RV6353 - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 348 x 195 x 146 mm / 13.7 x 7.7 x 5.7 inch
Notes

Raddrizzatore BY114S. 3 diodi al germanio. Mobile in plastica di colore grigio. Gamme d'onda: medie, corte, FM, TV.
1 rectifier, 3 germanium diodes. Grey plastic case. Wave bands: BC, SW, FM, TV.

Il modello 6353/a riceve i canali TV D, E, F, G, H

Il modello 6353/b riceve i canali TV A,B

Caution: Hot Chassis!
Mains is permanently connected to the chassis. Use an isolating transformer!

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data Guida Pratica Antique Radio (1) 1999

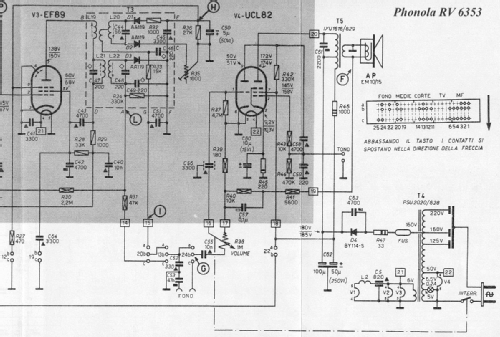

Literature/Schematics (1) Manuale di Servizio Assistenza Tecnica - PHONOLA

Model page created by Ettore Rossi. See "Data change" for further contributors.
