Liz 2 RT-7166

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 738867) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 738868) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744963) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744964) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744965) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744966) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744967) Radio

Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744968) Radio
Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744813) Radio Liz 2 RT-7166; Phonola SA, FIMI; (ID = 2153781) Radio
Liz 2 RT-7166; Phonola SA, FIMI; (ID = 2153782) Radio Liz 2 RT-7166; Phonola SA, FIMI; (ID = 2153783) Radio
Liz 2 RT-7166; Phonola SA, FIMI; (ID = 2153784) Radio Liz 2 RT-7166; Phonola SA, FIMI; (ID = 2153785) Radio
Use red slider bar for more.
Liz 2 RT-7166; Phonola SA, FIMI; (ID = 1744813) Radio
Phonola SA, FIMI;: Liz 2 RT-7166 [Radio] ID = 1744813 1008x792
Select picture or schematic to display from thumbnails on the right and click for download.
For model Liz 2 RT-7166, Phonola SA, FIMI; Saronno (VA):

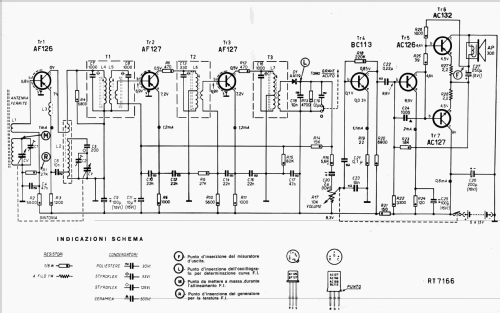

From original Service Manual.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF126 AF127 AF127 BC113 AC126 AC132 AC127 AA119
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.8 cm = 3.1 inch
Power out 0.32 W (unknown quality)
from Radiomuseum.org Model: Liz 2 RT-7166 - Phonola SA, FIMI; Saronno VA
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 110 x 55 mm / 6.9 x 4.3 x 2.2 inch
Notes

Con antenna in ferrite incorporata e controllo tonalità (bassi - alti)

Net weight (2.2 lb = 1 kg) 0.630 kg / 1 lb 6.2 oz (1.388 lb)
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.139 (9/10-2017) pag.44-46)
Literature/Schematics (1) -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 1° Antonelliana)
Literature/Schematics (2) Manuale di Servizio Assistenza Tecnica - PHONOLA

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
