Mascotte TT1165

Mascotte TT1165; Phonola SA, FIMI; (ID = 2454585) Television
Mascotte TT1165; Phonola SA, FIMI; (ID = 2058510) Television Mascotte TT1165; Phonola SA, FIMI; (ID = 2058511) Television
Use red slider bar for more.
Mascotte TT1165; Phonola SA, FIMI; (ID = 2058510) Television
Phonola SA, FIMI;: Mascotte TT1165 [Television] ID = 2058510 1400x1375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mascotte TT1165, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1967 Category: Television Receiver (TV) or Monitor
Valves / Tubes 2: A28-13W DY51
Semiconductors (the count is only for transistors) 28: AF179 AF181 AF115 AF118 AC130 AC127 OC44 OC45 AD149 AC130 AC128 BC116 AU103 AA119 BA100 BY118 BZ100 B30C2200 OA90
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mascotte TT1165 - Phonola SA, FIMI; Saronno VA
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Notes

11 pollici

Ogni tipo di semiconduttore elencato una volta

Price in first year of sale 129'000.00 ITL

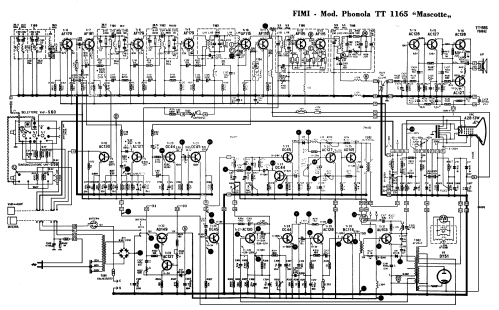

Literature/Schematics (1) -- Schematic

Model page created by Manuel Zenato. See "Data change" for further contributors.
