Neosinto 1010

Neosinto 1010; Phonola SA, FIMI; (ID = 620251) Radio

Neosinto 1010; Phonola SA, FIMI; (ID = 620252) Radio
Use red slider bar for more.

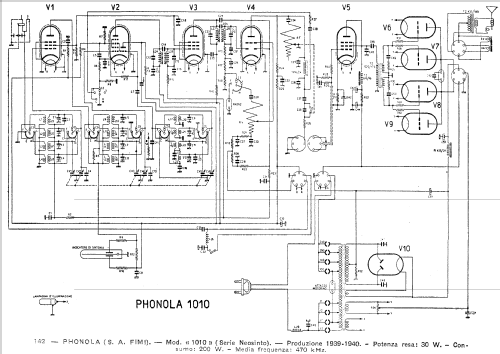

Neosinto 1010; Phonola SA, FIMI; (ID = 620251) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: EF9 ECH3 EF9 EBC3 EL3 6B4G 6B4G 6B4G 6B4G 5X4G Neon_Indicator
Main principle Superhet with RF-stage; ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer); Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 100-270 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 30 cm = 11.8 inch
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Neosinto 1010 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 880 x 800 x 400 mm / 34.6 x 31.5 x 15.7 inch
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Radio Italiene I di Mureddu

Model page created by Roman Kupperman. See "Data change" for further contributors.
