PA9140T /38

PA9140T /38 ; Phonola SA, FIMI; (ID = 1740526) R-Player PA9140T /38 ; Phonola SA, FIMI; (ID = 1740527) R-Player
PA9140T /38 ; Phonola SA, FIMI; (ID = 1740528) R-Player
Use red slider bar for more.
PA9140T /38 ; Phonola SA, FIMI; (ID = 1740526) R-Player
Phonola SA, FIMI;: PA9140T /38 [R-Player] ID = 1740526 1400x1558
Select picture or schematic to display from thumbnails on the right and click for download.
For model PA9140T /38, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1973 ? Category: Sound/Video Recorder and/or Player
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player; Power Supply (not only Batt.El.)

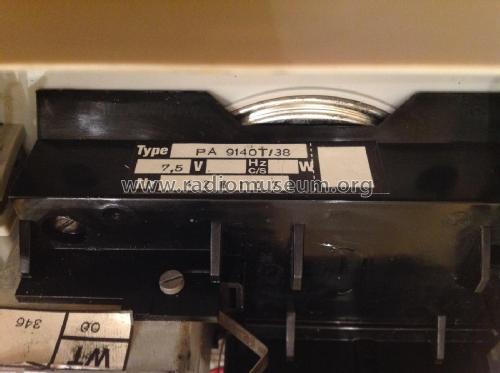

Power type and voltage Line / Batteries (any type) / 7,5 / 5 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out
from Radiomuseum.org Model: PA9140T /38 - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 115 x 60 x 205 mm / 4.5 x 2.4 x 8.1 inch
Notes

Il registratore ha una doppia alimentazione:

- alla rete mediante un alimentatore/trasformatore di corrente in entrata di 220V e in uscita 7,5V con attacco da 5 din;
- a mezzo di n. 5 batterie "mezze torce" da 1,5V

Uscita audio per connessione altoparlante esterno mediante connettore punto-linea.

Entrata con connettore a 5 din per microfono o altra fonte audio.

Regolazione separata del volume di registrazione.

Vedi anche il EL3302 Philips Cassette Recorder.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

Model page created by Marco Boiardi. See "Data change" for further contributors.
