Phonolino 3 RR1305
Phonola SA, FIMI; Saronno (VA)
- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167676

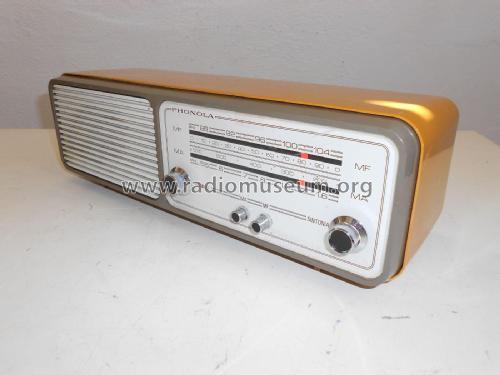

General view

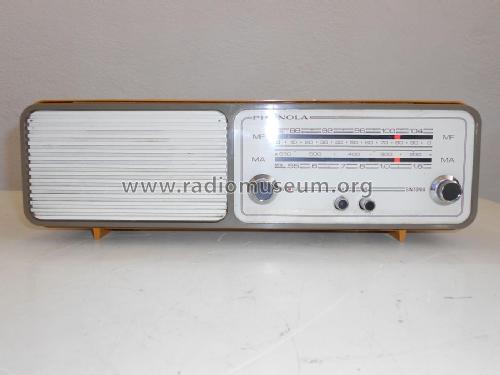

Front view of the radio
FM antenna connector

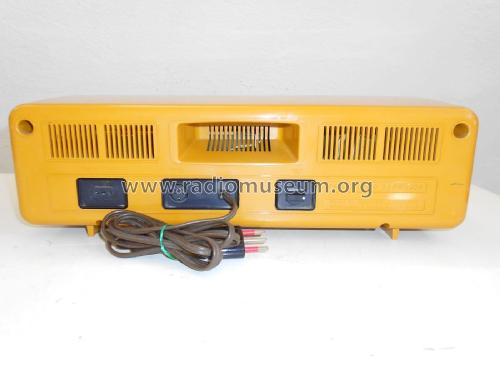

Audio connector and power cable
Model number on the back
Voltage selector
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 12 cm = 4.7 inch
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Phonolino 3 RR1305 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 380 x 110 x 110 mm / 15 x 4.3 x 4.3 inch
- Notes
-
5 diodi AA119 e un D01.
- Net weight (2.2 lb = 1 kg)
- 1.7 kg / 3 lb 11.9 oz (3.744 lb)
- Mentioned in
- Catalogo ANIE (1970-71, p. 37)
- Literature/Schematics (1)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)
- Author
- Model page created by Sergio Bracchi. See "Data change" for further contributors.
