Poker RT-7160

Poker RT-7160; Phonola SA, FIMI; (ID = 1408948) Radio
Poker RT-7160; Phonola SA, FIMI; (ID = 700216) Radio
Use red slider bar for more.

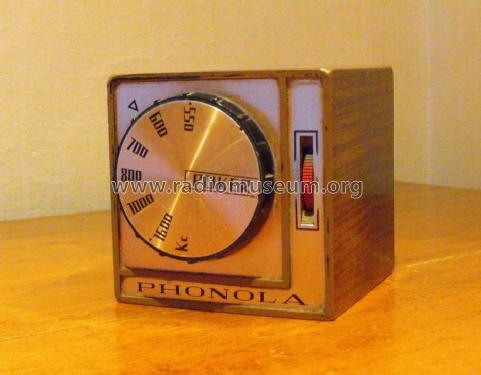

Poker RT-7160; Phonola SA, FIMI; (ID = 700216) Radio
Phonola SA, FIMI;: Poker RT-7160 [Radio] ID = 700216 933x727
Select picture or schematic to display from thumbnails on the right and click for download.
For model Poker RT-7160, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1969 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF170 AF172 AF172 AC134 AC138 AC139 AC141 AA121
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Poker RT-7160 - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 82 x 82 x 82 mm / 3.2 x 3.2 x 3.2 inch
Notes Mobile in plastica a forma di cubo.
Collectors' prices
Literature/Schematics (4) -- Schematic

Model page created by Giuseppe Duello. See "Data change" for further contributors.
