Radio AM RT6359 RF119

Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310074) Radio Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310073) Radio
Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310075) Radio Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310076) Radio
Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310077) Radio Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310078) Radio
Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310079) Radio
Use red slider bar for more.

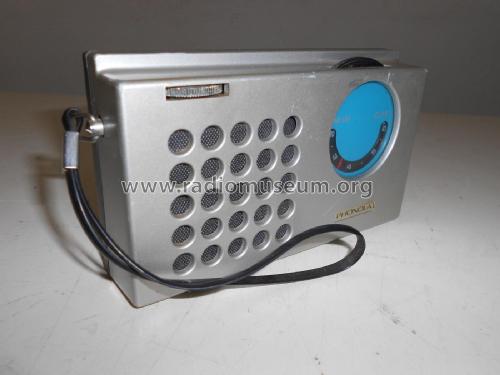

Radio AM RT6359 RF119; Phonola SA, FIMI; (ID = 2310074) Radio
Phonola SA, FIMI;: Radio AM RT6359 RF119 [Radio] ID = 2310074 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio AM RT6359 RF119, Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Radio AM RT6359 RF119 - Phonola SA, FIMI; Saronno VA
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 138 x 82 x 30 mm / 5.4 x 3.2 x 1.2 inch
Notes

controllo volume - maniglia di trasporto - antenna interna in ferrite.

Net weight (2.2 lb = 1 kg) 0.350 kg / 0 lb 12.3 oz (0.771 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
