Serie d'oro 551

Serie d'oro 551; Phonola SA, FIMI; (ID = 1299178) Radio Serie d'oro 551; Phonola SA, FIMI; (ID = 1299179) Radio
Serie d'oro 551; Phonola SA, FIMI; (ID = 1299180) Radio Serie d'oro 551; Phonola SA, FIMI; (ID = 1299181) Radio
Use red slider bar for more.
Serie d'oro 551; Phonola SA, FIMI; (ID = 1299178) Radio
Phonola SA, FIMI;: Serie d'oro 551 [Radio] ID = 1299178 448x542
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serie d'oro 551, Phonola SA, FIMI; Saronno (VA):

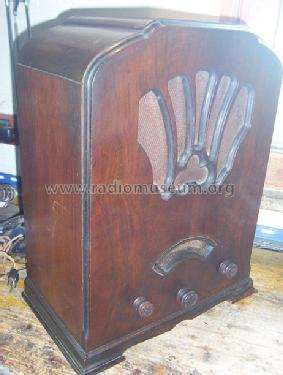

Vista frontale

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 24 35 24 47 80
Main principle Super-Heterodyne (Super in general); ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: Serie d'oro 551 - Phonola SA, FIMI; Saronno VA
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 360 x 465 x 200 mm / 14.2 x 18.3 x 7.9 inch
Notes Altoparlante della Magnavox. Zoccoli delle valvole riportanti indicazioni sul tipo di valvole (224 235 224 247 280). Mobile a forma Tombstone.
Price in first year of sale 1'600.00 ITL

Model page created by Salvatore Baldi † 2017. See "Data change" for further contributors.
