605 Telesinto 1020

605 Telesinto 1020; Phonola SA, FIMI; (ID = 47350) Radio

605 Telesinto 1020; Phonola SA, FIMI; (ID = 47353) Radio

605 Telesinto 1020; Phonola SA, FIMI; (ID = 313015) Radio

605 Telesinto 1020; Phonola SA, FIMI; (ID = 408533) Radio

605 Telesinto 1020; Phonola SA, FIMI; (ID = 408534) Radio

605 Telesinto 1020; Phonola SA, FIMI; (ID = 408535) Radio
Use red slider bar for more.
605 Telesinto 1020; Phonola SA, FIMI; (ID = 47350) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1937/1938 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AF3 or WE33 AK2 AF7 or WE34 ABL1 Neon_Indicator ABL1 80
Main principle Superhet with RF-stage; ZF/IF 470 kHz; Reflex
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 100-270 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 605 Telesinto 1020 - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Serie Radioconverto.

Indicatore di sintonia al neon.
Neon meter.

The IF amplifier is reflexed as the 1st af amplifier.

Source of data Guida Pratica Antique Radio IV (2001)

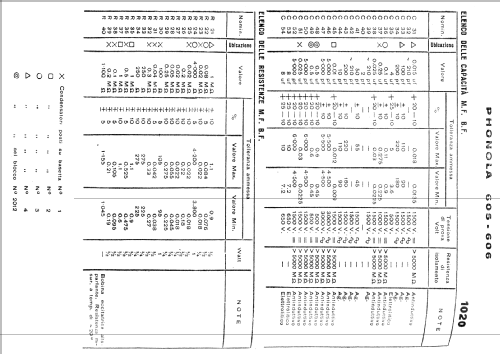

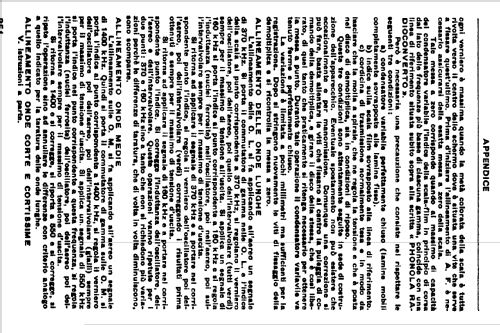

Literature/Schematics (1) Collezione di Schemi, Scuola Radio Elettra 1953

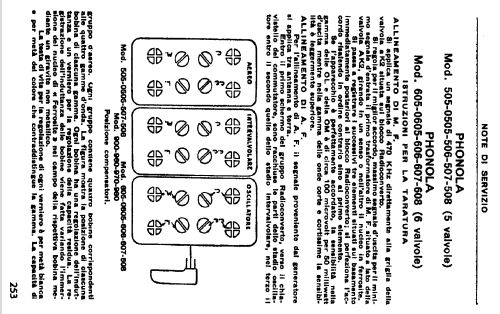

Literature/Schematics (2) Il Radio Libro, (Ravalico) 5.Edizione 1939

Model page created by Alessandro De Poi. See "Data change" for further contributors.
