• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179996

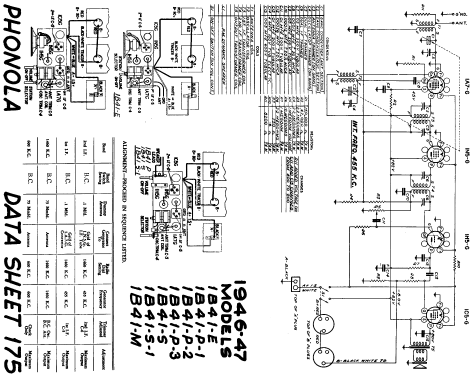

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7G 1N5G 1H5G 1C5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1,5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.24 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Arcadia ch= 1B41-M - Electrohome Dominion

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 293 x 200 x 134 mm / 11.5 x 7.9 x 5.3 inch

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Phonola Pages 175, 180f

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
