• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 177050

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 78 or 6K7 6A7 78 or 6K7 78 or 6K7 6E5 6B7 42 or 6F6 42 or 6F6 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org

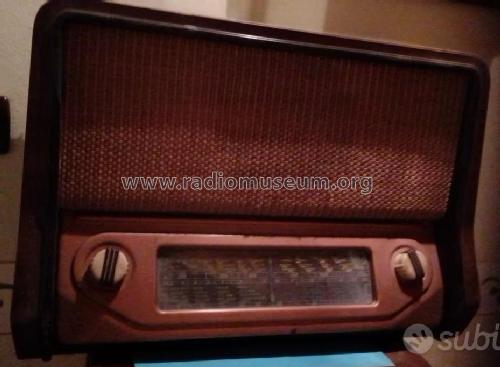

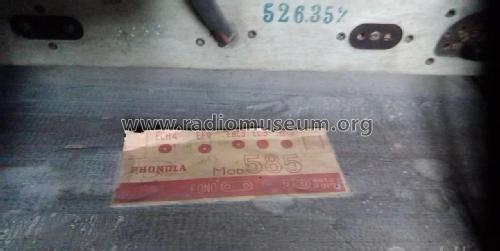

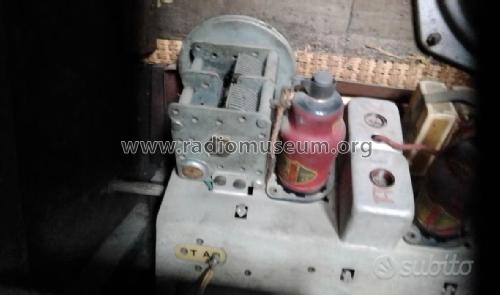

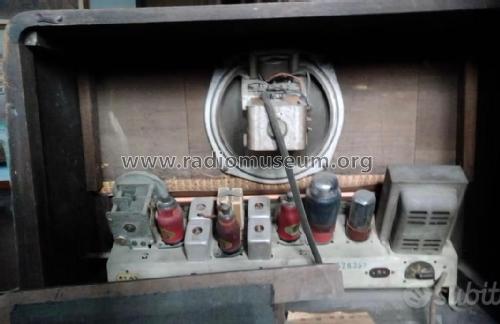

• Model: 585 - Electrohome Dominion

• Notes
• Tuning eye; push-pull af output.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Phonola Pages 35, 37

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
